Introduction
If you’ve ever looked at an electricity bill or studied electrical systems, you’ve probably heard the term “Apparent Power”. But what exactly is it? Think of it like a pizza — the size of the pizza (apparent power) isn’t always the same as the amount you can actually eat (real power). The Apparent Power Calculator helps in visualizing this concept.
In electrical engineering, Apparent Power is measured in kilovolt-amperes (kVA), and it helps us understand the total power flowing through a system. For students, mastering this concept is crucial because it connects directly to practical applications like designing circuits, choosing transformers, and improving efficiency. Utilizing an Apparent Power Calculator can simplify these calculations.
Let’s explore the Apparent Power Calculator in detail and see how you can use it with confidence to enhance your understanding of electrical systems.
Table of Contents
1. What is Apparent Power?
Apparent Power is the combination of real power (the usable power) and reactive power (the power stored and released by inductors and capacitors). It represents the total amount of power flowing in an electrical circuit, whether it is being used or not.
2. Why Apparent Power Matters in Electrical Systems
Apparent Power is crucial because electrical equipment like generators, transformers, and cables must be rated for the total power they carry — not just the usable part. Oversizing or undersizing equipment can lead to inefficiency, overheating, or even system failure.
3. Apparent Power Formula
The basic formula is:
S = V × I
Where:
- S = Apparent Power (in VA or kVA)
- V = Voltage (in volts)
- I = Current (in amperes)
For AC circuits, the formula includes the power factor (PF):
S = P / PF
4. Apparent Power Units
- Volt-Amperes (VA) for small loads
- Kilovolt-Amperes (kVA) for larger systems
- Megavolt-Amperes (MVA) for heavy industrial loads
5. Apparent Power vs Real Power vs Reactive Power
- Real Power (P): The actual usable power, measured in watts (W).
- Reactive Power (Q): The non-usable power caused by inductance or capacitance, measured in volt-ampere reactive (VAR).
- Apparent Power (S): The vector sum of real and reactive power.

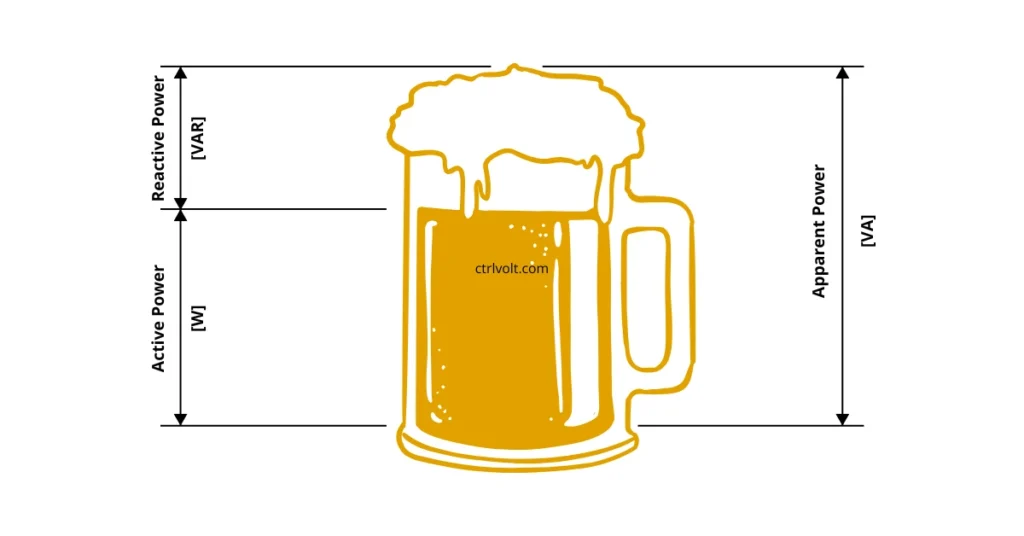

Think of them as a glass of beer:
- Beer = Real Power
- Foam = Reactive Power
- Beer + Foam = Apparent Power
6. Power Triangle and Its Significance
The power triangle is a visual way to understand the relationship between real, reactive, and apparent power. The horizontal side represents real power, the vertical side reactive power, and the hypotenuse apparent power.
7. How to Calculate Apparent Power Manually
Example:
If a circuit has:
- Voltage = 230 V
- Current = 10 A
S = V × I = 230 × 10 = 2300 VA = 2.3 kVA
8. Using an Apparent Power Calculator
An Apparent Power Calculator is an online tool where you enter voltage, current, and sometimes power factor to instantly get the kVA value. It saves time and reduces calculation errors — great for quick lab work or design checks.
9. Real-Life Example of Apparent Power Calculation
Imagine you’re designing a transformer for a small workshop. The workshop uses 10 kW of real power with a power factor of 0.8:
S = P / PF = 10 / 0.8 = 12.5 kVA
So, you’ll need a transformer rated for at least 12.5 kVA.
10. Common Mistakes in Apparent Power Calculations
- Forgetting to account for the power factor
- Mixing up kW and kVA
- Using incorrect voltage values (line vs phase voltage in 3-phase systems)
11. Apparent Power in Single-Phase Systems
For single-phase:
S = V × I
Example:
230 V, 15 A → 3.45 kVA
12. Apparent Power in Three-Phase Systems
For three-phase:
S = √3 × VL × IL
Where:
VL = Line Voltage
IL = Line Current
Example:
400 V, 20 A → 13.86 kVA
13. Improving Power Factor to Reduce Apparent Power
Improving power factor means less reactive power, which reduces apparent power. This can be done using:
- Capacitor banks
- Synchronous condensers
- Proper load management
14. Practical Applications for Students
- Transformer sizing
- Generator selection
- Cable sizing for industrial setups
- Energy efficiency projects
15. Conclusion
Understanding Apparent Power is like understanding the total size of your meal before deciding what plate to use — you need the whole picture to make the right choice. Whether you’re working in a lab or planning an industrial installation, mastering this concept will make you a better electrical engineer.
FAQs
1. What is the difference between kW and kVA?
kW is real power (usable), while kVA is apparent power (total).
2. Why is apparent power important?
It determines the rating of electrical equipment to handle total load.
3. Can apparent power be less than real power?
No, apparent power is always equal to or greater than real power.
4. How do I measure apparent power?
Use a power meter or calculate using voltage, current, and power factor.
5. Does improving power factor reduce apparent power?
Yes, it lowers reactive power, which reduces the total apparent power.
